SPECIFICATIONS

Accuracy: 0.05%

Battery: 1.5V AA * 3(Not Included)

Battery Included: no

Brand Name: RuoShui

DCI Measurement: 30mA

DCI Output: 20mA

DCV Measurement: 100mV/1V/35V

DCV Output: 10V

High-concerned chemical: none

Loop power supply: 24V

Measurement Accuracy: 0.05%

Origin: Mainland China

Semi-finishedproduct: No

Water prodtection: IP65

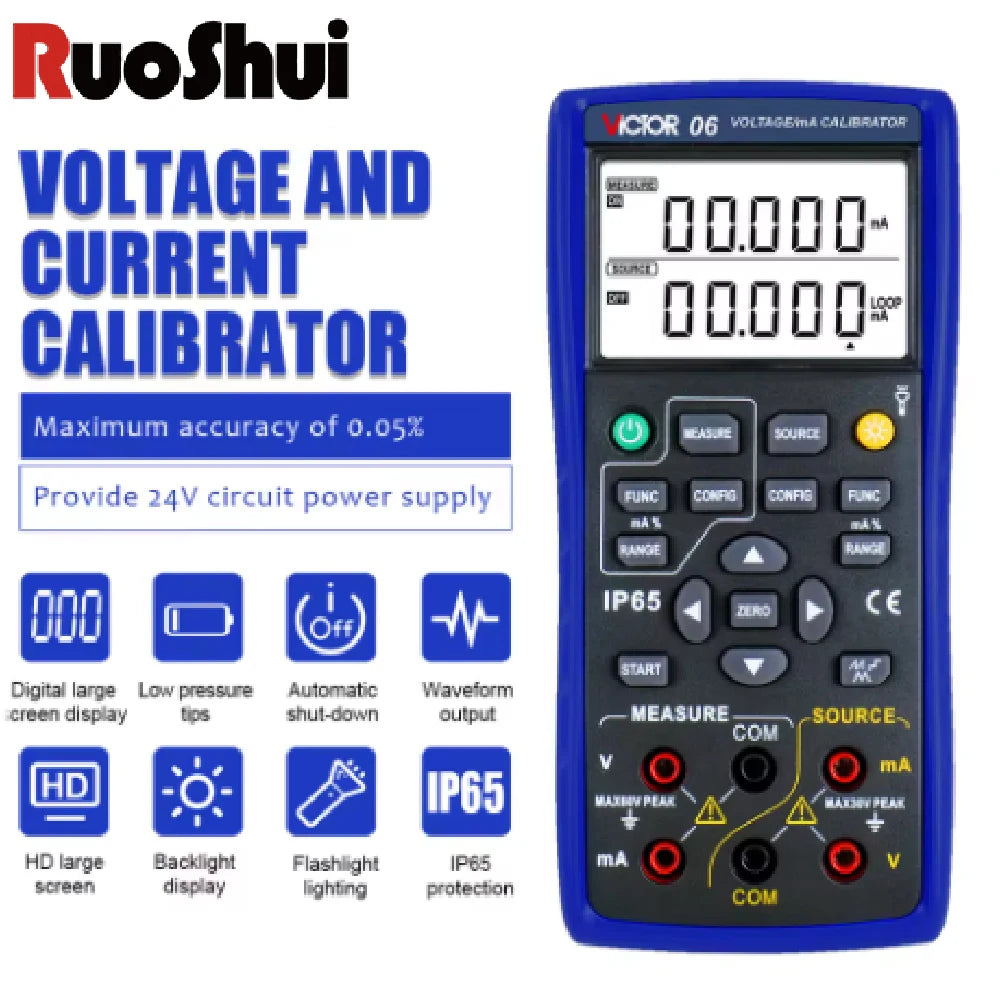

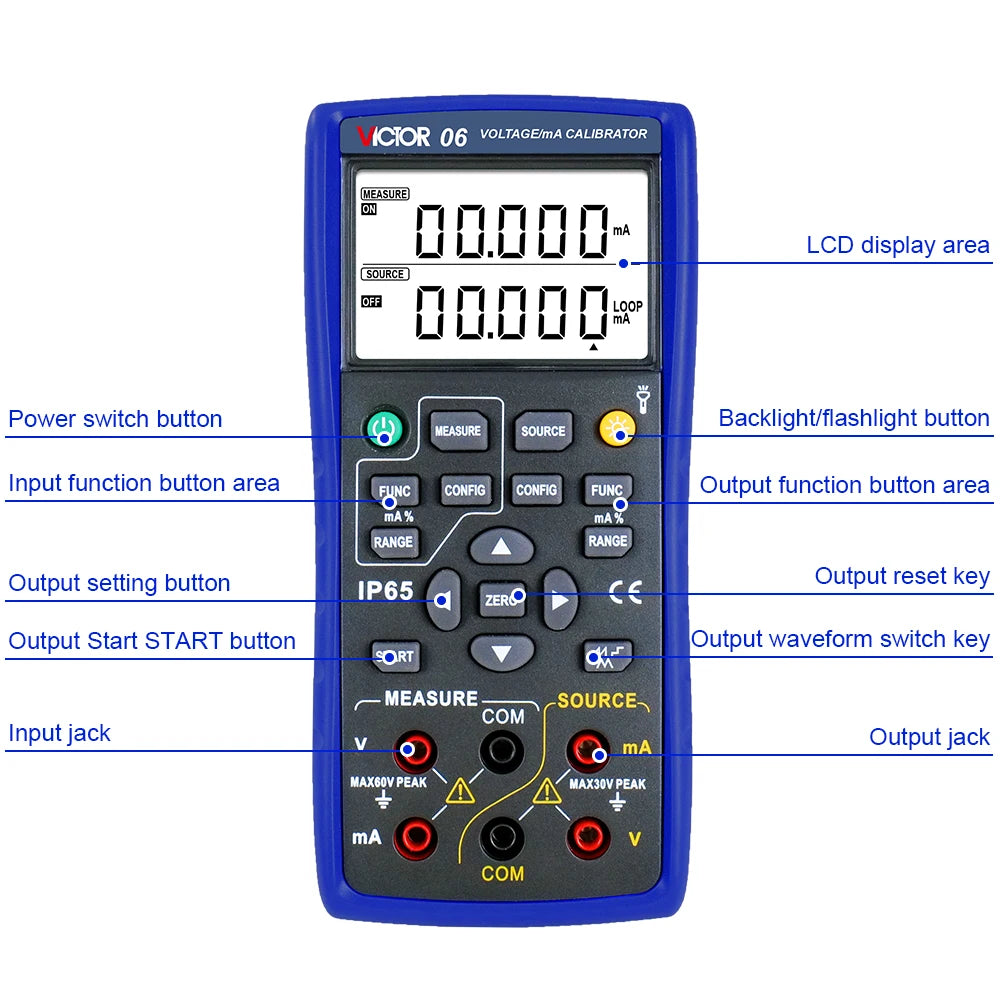

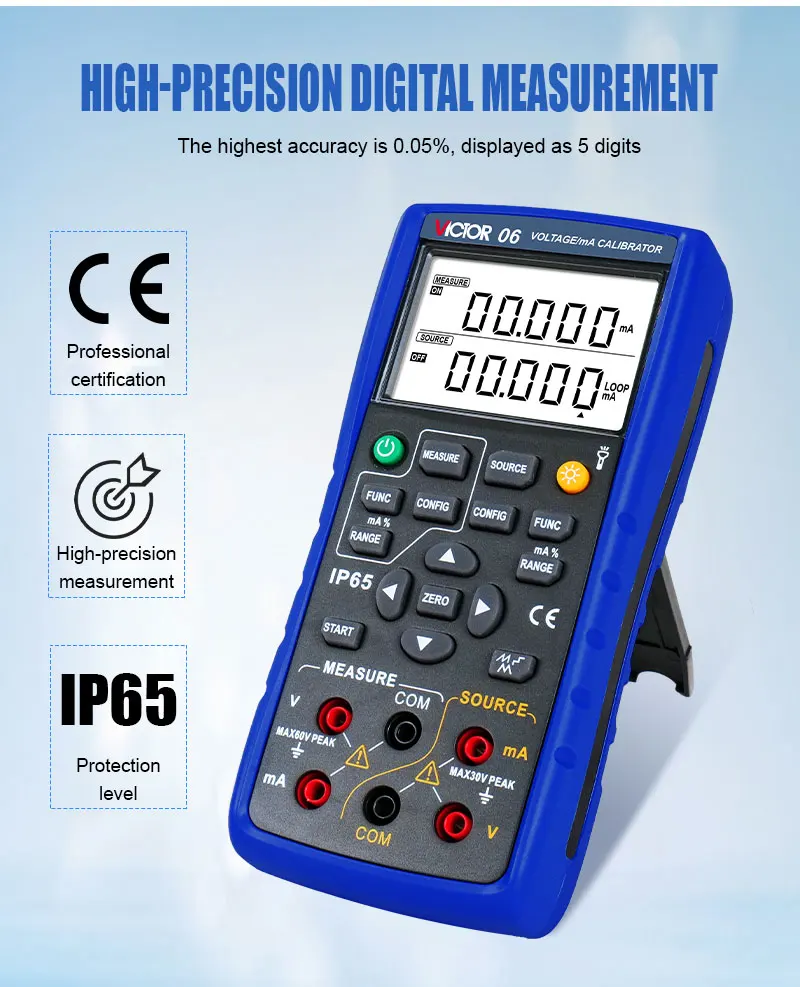

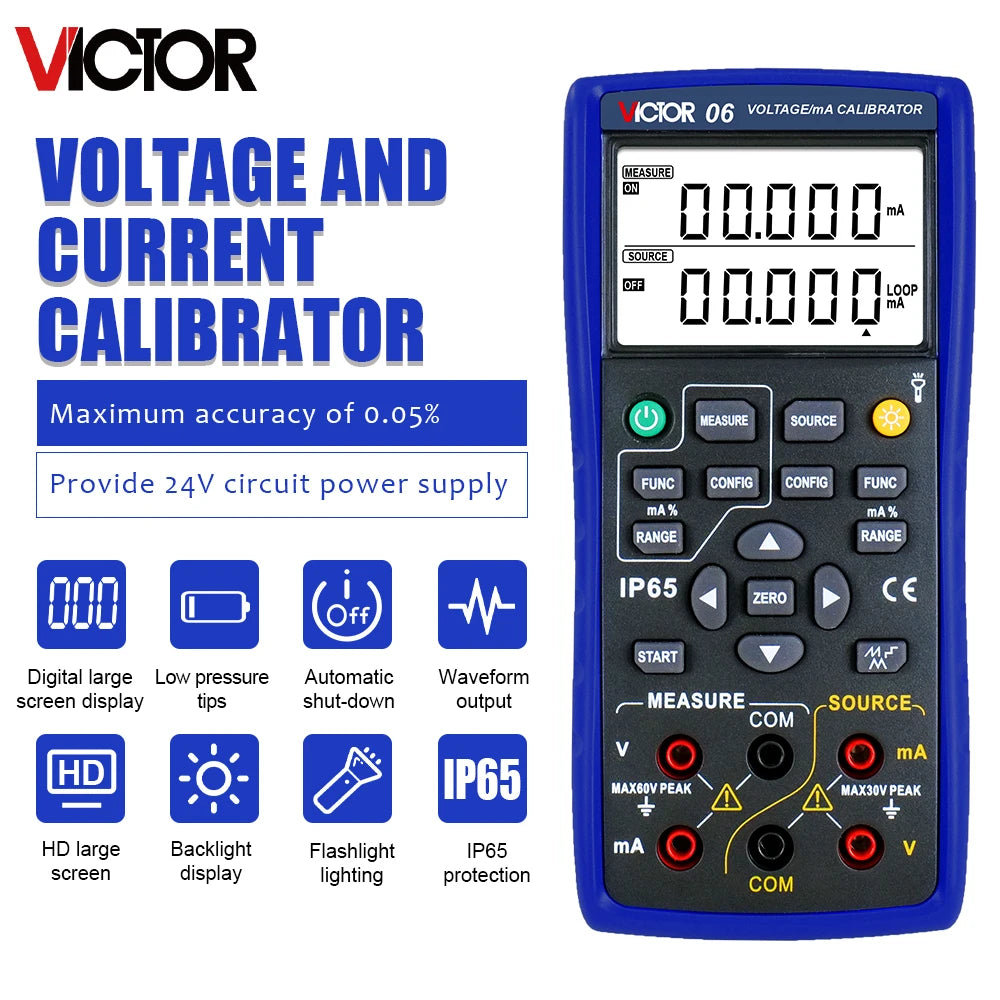

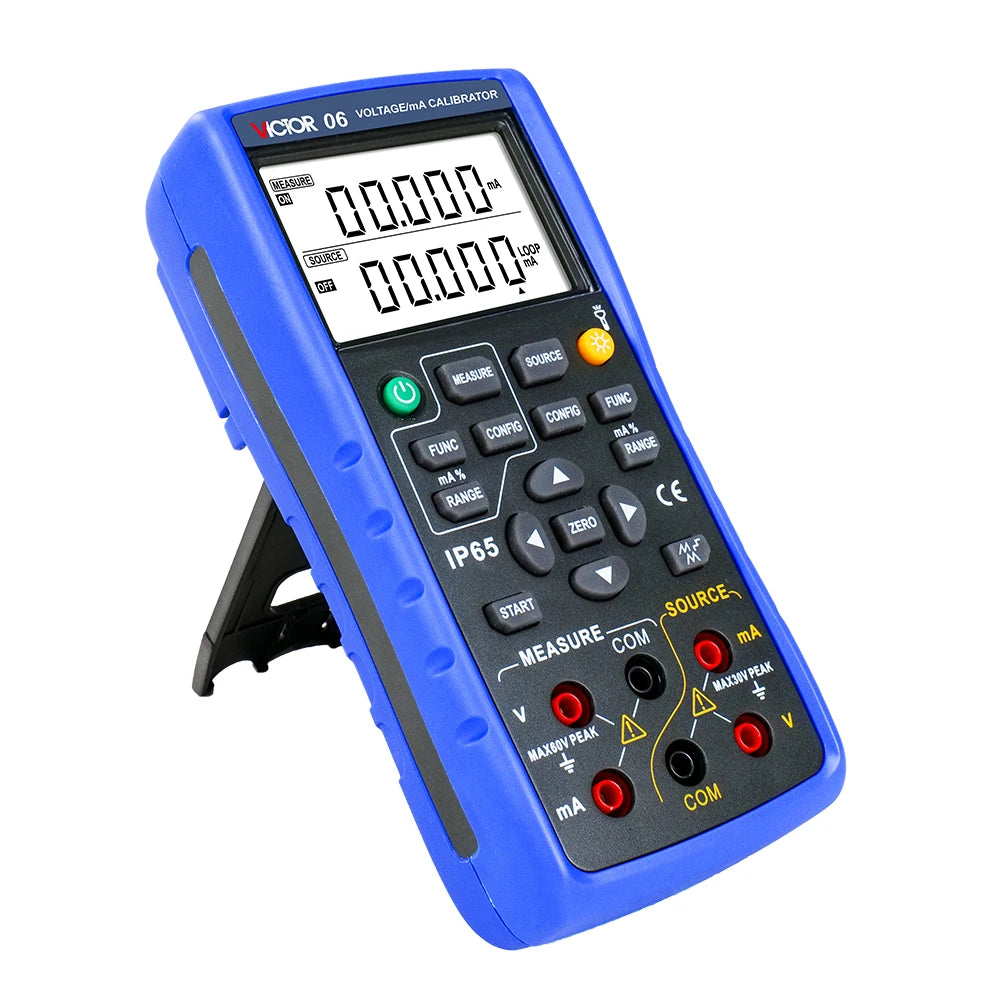

VICTOR 06 Handheld Voltage and Current Calibrator, High Accuracy 0.05%, 4-20mA Loop,mV, Hz Multifunction Process Calibration

(100% Original Factory Direct Sale)

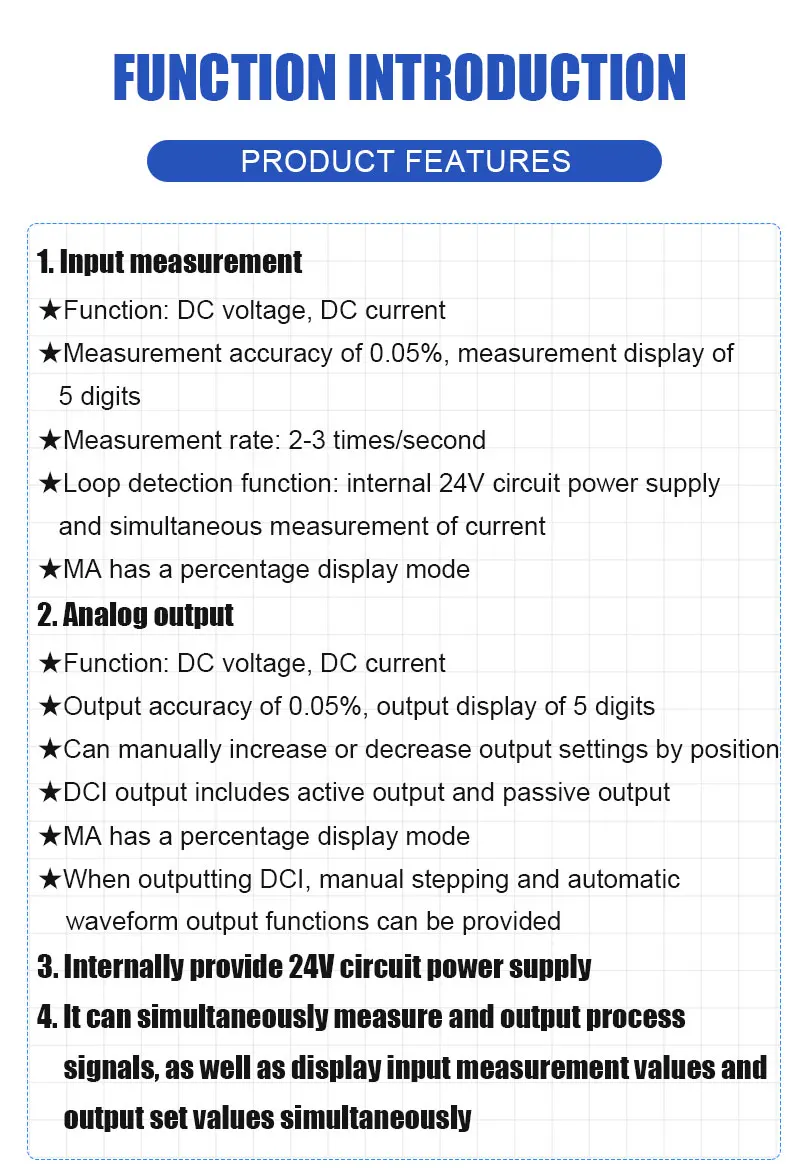

Feature:

1.Measuring Parameters: DC Voltage and DC Curremt.

2.Loop Power: Simultaneously provides 24V loop power to transmitters while conducting mA current measurements.

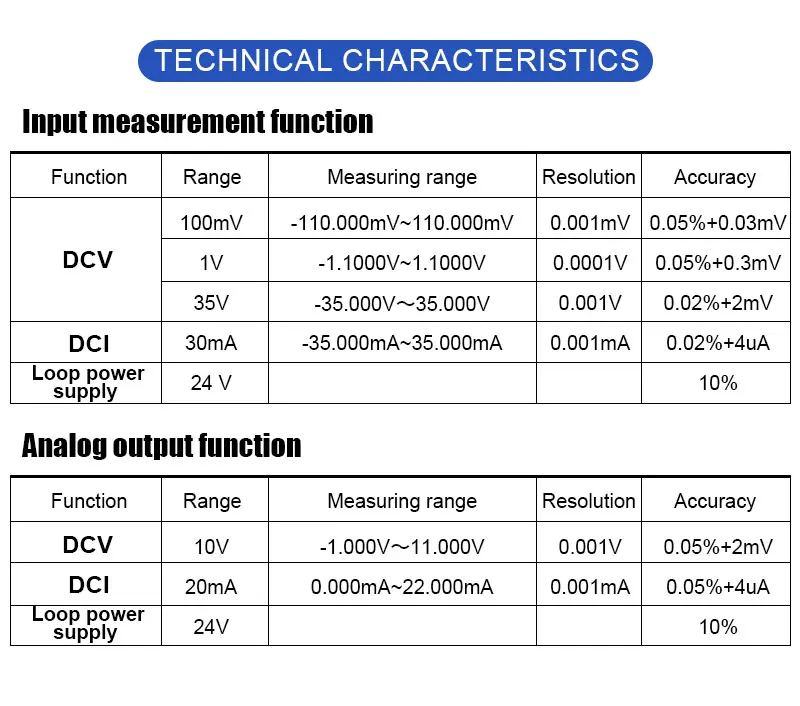

3.DC Voltage Measurement: Range: 100mV, Measuring range:-110.000mV~110.000mV;Resolution: 0.001mV, Accuracy: 0.05%+0.03mV; 1V, Measuring range:-1.1000V~1.1000V;Resolution: 0.0001V, Accuracy: 0.05%+0.3mV; 35V, Measuring range:-35.000V～35.000V;Resolution: 0.001V, Accuracy: 0.02%+2mV;DCI Range: 30mA, Resolution: 0.001mA, Accuracy: 0.02%+4uA.

4.Analog Output Measurement: Range: DCI Range: 30mA, Resolution: 0.001mA, Accuracy: 0.02%+4uA; Operating Temperature: 5°C to 50°C; Operating Relative Humidity: <80% RH, Storage Temperature: -10°C to 55°C, Storage Humidity: < 90% RH.

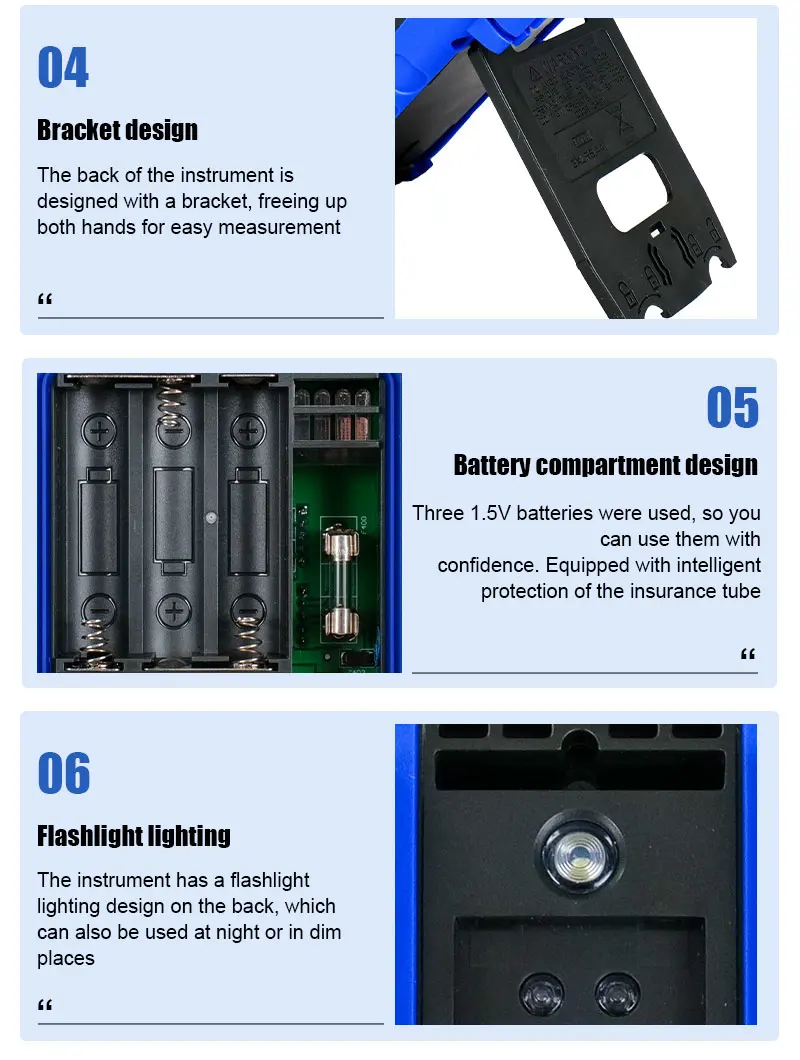

5.Power Supply: 6V batteries (3*1.5V alkaline AAA batteries)(Not included); Safety: Compiled with IEC61010 (Safety standard issued by International Electro-technical commission.

Specification:

Model: 06

Brand: VICTOR /RuoShui

Product Name:Voltage and Current Calibrator

Accuracy: 0.05%

Waterproof: IP65

DCV Measurement: 100mV/1V/35V

DCI Measurement:30mA

DCV Output: 10V

DCI Output: 20mA

Loop power supply: 24V

Application:Electrical Testing
